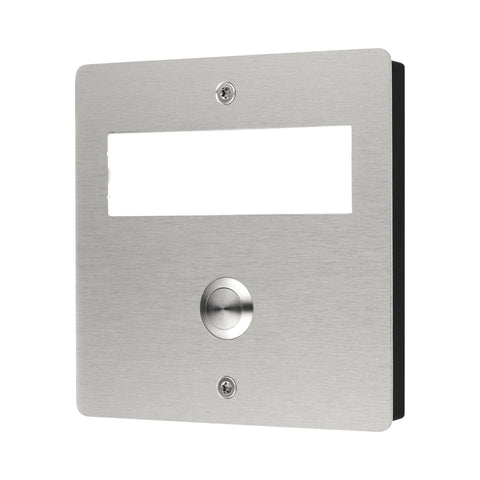

Wireless door bell plate, surface-mounted in Aluminium stainless steel look

The Surface mounted door bell plate combines an attractive appearance and proven MISTRAL wireless technology. This wireless door bell push button can be used to trigger wireless doorbells from the MISTRAL, ECHO and CALIMA series. The bell push button is battery-operated, but can also be operated with an external power supply as an option. Different metal or plastic surfaces can be ordered in this range for the push-button and there is also a surface-mounted and flush-mounted version of the door bell push button plate.

For all wireless doorbells in the MISTRAL, ECHO and CALIMA series
- Single door bell push button
- Range: 500 m
- Surface: aluminium, stainless steel look
- With name plate
- Surface mounting
- Surface-mounted frame included

Note:
Batteries not included in the package.
Delivery includes surface-mounted frame.
Built-in push-button: PROTACT 150 VA (62000)

For installation manual Click Here

Device type:	Wireless doorbell button
Dimensions:	130 x 130 x 20 mm
Series:	MISTRAL
Color:	V2A
Form:	Rectangular
Frequency:	868.35MHz
Installation:	Surface-mounted
Number of buttons:	1
Operating temperature:	-10 °C to 50 °C
Power supply:	2 x 1.5 V type AAA (not included)
Protection class:	IP44
Radio range:	500 m in open field

Grothe Mistral Wireless Door Bell Push Plate - Surface mounted Stainless steel/ aluminum look
