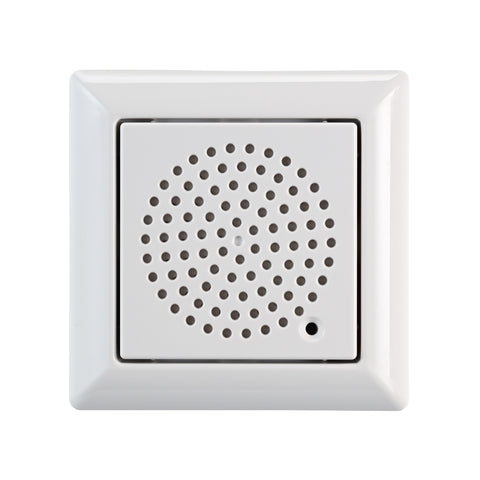

UP wireless doorbell chime unit UP-FG E 230ws. Will pair with nay of the Mistral doorbell push button range giving you a 500 meter long range

The simple design of the single gang flush-mounted wireless doorbell chime unit series blends unobtrusively into numerous products from well-known switch back box manufacturers. Simply integrate flexibly on site. The wireless doorbell is very simple to operate. With one-button operation and clear menu navigation, which even includes voice output, handling is child's play and accessible to all age groups.

Musical variety and muting
The wireless doorbell offers you the option of selecting your personalised ringtone from 15 polyphonic melodies. This allows you to give your guests a personalised and unique welcome. The mute function is extremely practical for times when you prefer peace and quiet. The visual display discreetly informs you of incoming doorbell calls, while the doorbell remains muted for a preset time (1, 3 or 9 hours).

Customised ring tone
The wireless doorbell enables 15-fold call differentiation, allowing you to set an individual ring tone for each transmitter. So you always know exactly where the bell rang.

Flexibility and easy installation
The ability to create flexible transmitter/receiver combinations makes the wireless doorbell extremely versatile. You can place multiple transmitters in different areas of your home and programme the doorbell accordingly to get different ringing tones for different areas. This is particularly useful in large residential areas or multi-storey houses.

Installing the wireless doorbell is also straightforward. The scope of delivery includes a mounting plate and a frame that enable simple and secure integration into a 60 mm deep flush-mounted box.

To view the manual click here:

To listen to the melodies click here:

Note:
Use single gang switch back boxes with a depth of 60 mm
The flush-mounted FG 230ws fits into frames of the surface programmes of switch manufacturers with 55 mm internal dimensions.

The switch manufacturer's back box may need to be modified

Device type:	UP wireless chime unit

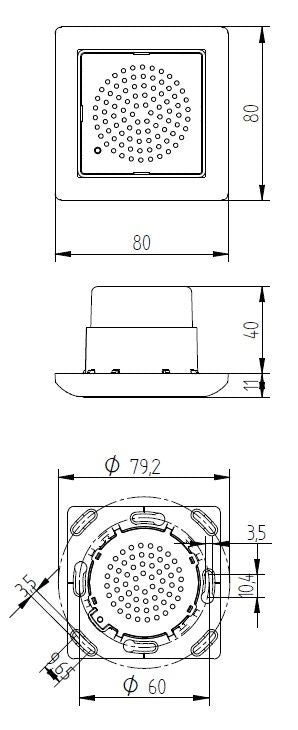

Dimensions:	80x80x11mm
Color:	White
Control:	Compatible with any MISTRAL transmitter e.g. MISTRAL SE03, BM03, SE06
Frequency:	868.35MHz 500meter operating range
Installation:	Flush-mounted
Installation depth:	40mm
Number of melodies:	15 polyphonic melodies
Power supply:	230V AC, 230V AC, 50Hz
Radio range:	250 m in open field
Voice output:	German
Volume:	Max. 83 dB(A) adjustable

Grothe Wireless chime unit - flush mount to fit in a single gang back box
